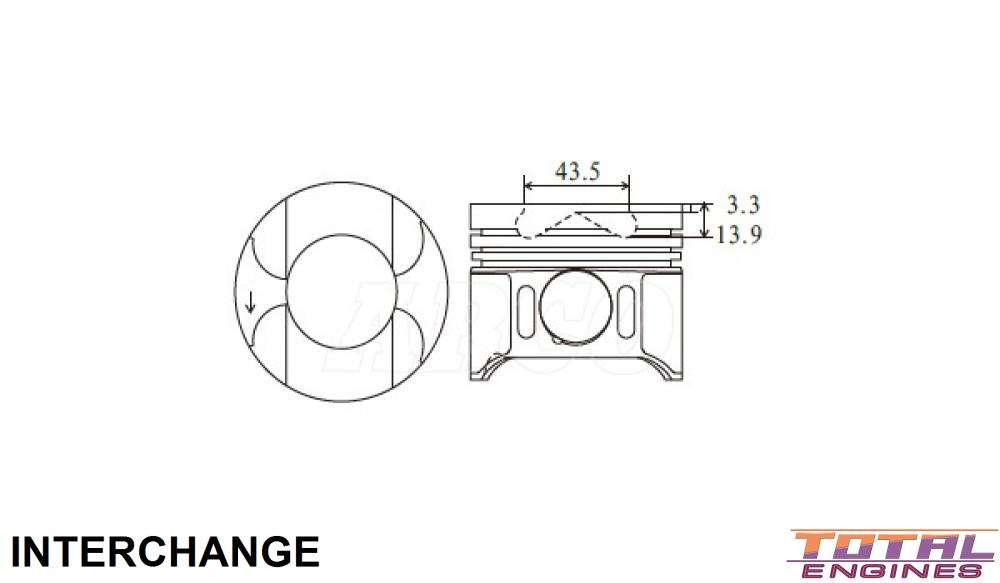

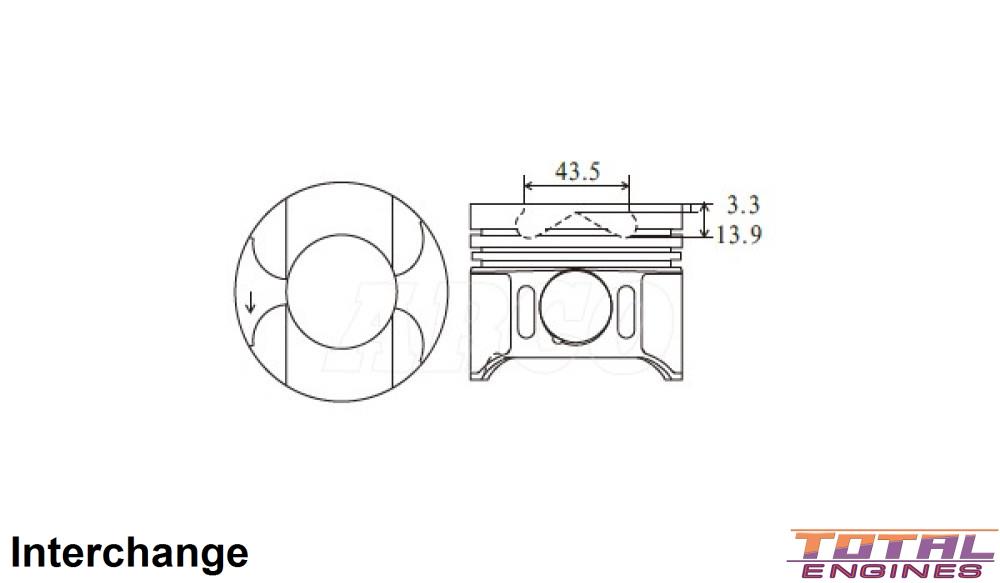

INTERCHANGE Piston & ring set - PKMBOM611-.50

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	88.00mm
Size:	0.50mm/.020"
Head Type:	Dish top with four valve relief
Piston Type:	Cast
Length:	72.30mm
Comp Height:	42.30mm - 3.30mm -13.90mm
Combustion Bowl OD:	43.50mm
Pin Size:	30.00mm x 70.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm

Description

Suits parallel conrod type

Alfin inserts, Oil gallery cooling, MOS2 coated skirts

Suits parallel conrods only
