Interchange Piston & ring set - PKMBOM611-STD

Specifications
Oil Ring Width:	3.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	Yes
Pin Type:	Full Floating
Pin Size:	30.00mm x 70.00mm

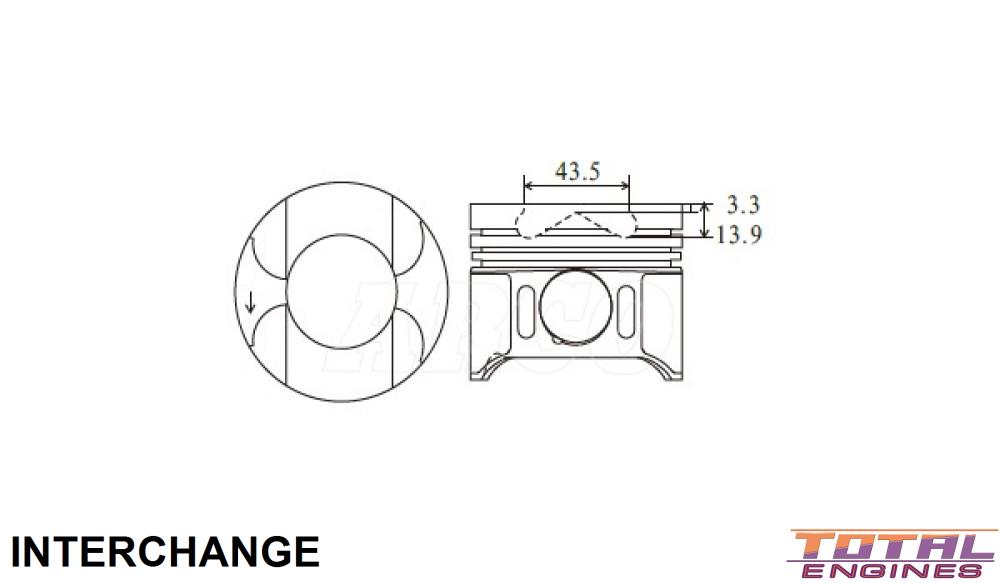

Combustion Bowl OD:	43.50mm
Comp Height:	42.30mm - 3.30mm -13.90mm
Length:	72.30mm
Piston Type:	Cast
Head Type:	Dish top with four valve relief
Size:	STD
Std Bore Size:	88.00mm
Piston Set:	4 x Pistons, Pins & Rings

Description

Suits parallel conrod type

Alfin inserts, Oil gallery cooling, MOS2 coated skirts

Suits parallel conrods only
