INTERCHANGE Piston & ring set - PKNRD28TI-A-1.0

Specifications
Piston Set:	6 x Pistons, Pins & Rings
Std Bore Size:	85.00mm
Size:	1.00mm/.040"

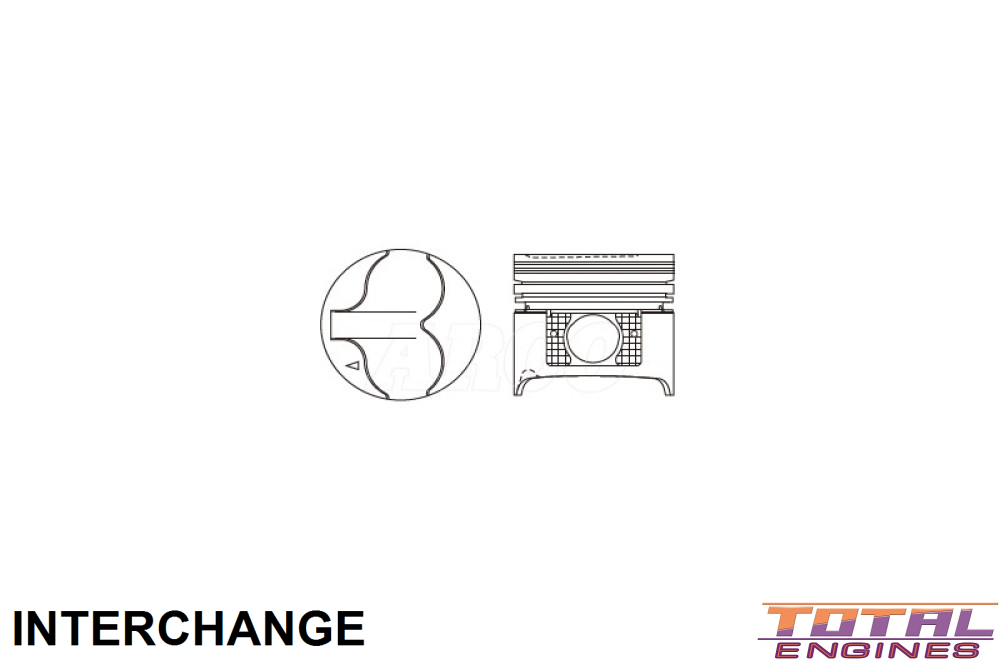

Head Type:	Flat top with two valve reliefs
Piston Type:	Cast
Length:	78.30mm
Comp Height:	46.80mm - 0.70mm - 1.80mm
Pin Size:	27.00mm x 61.50mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	4.00mm

Description

Suits Turbo intercooled only

Alfin insert, Oil gallery cooled, Anodized crown

AA Permaseal H/Gasket Part No: BV250SS Will Not Suit 1.00mm Oversize

Pistons
