INTERCHANGE Piston & ring set - PKNYD25LL-A-STD

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	89.00mm
Size:	STD

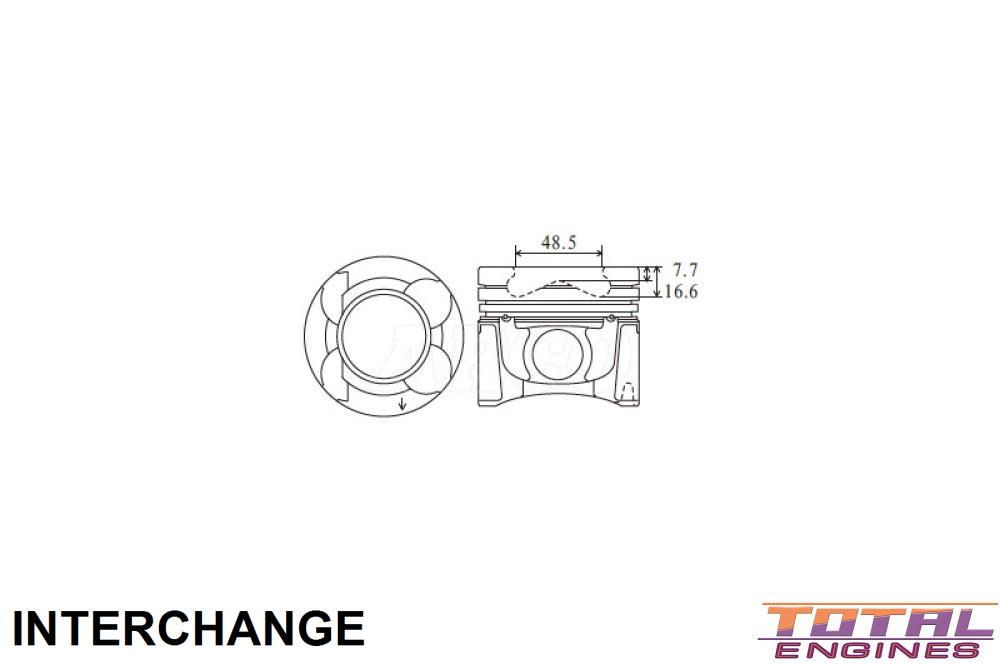

Head Type:	Dish top with four valve reliefs
Piston Type:	Cast
Length:	76.80mm
Comp Height:	48.80mm - 7.70mm -16.60mm
Combustion Bowl OD:	48.50mm
Pin Size:	28.00mm x 68.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm

Description

Suits R51M & D40M 01/2010 on

Alfin inserts, Oil gallery cooling, MOS2 coated skirts
