INTERCHANGE >> INTERCHANGE Piston & ring set - PKNZD30DDTI-1.0

INTERCHANGE Piston & ring set - PKNZD30DDTI-1.0

Part
INTERCHANGE logo

INTERCHANGE Piston & ring set - PKNZD30DDTI-1.0

Out Of Stock

Specifications
Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 96.00mm
Size: 1.00mm/.040"
Head Type: Dish top
Piston Type: Cast
Length: 78.10mm

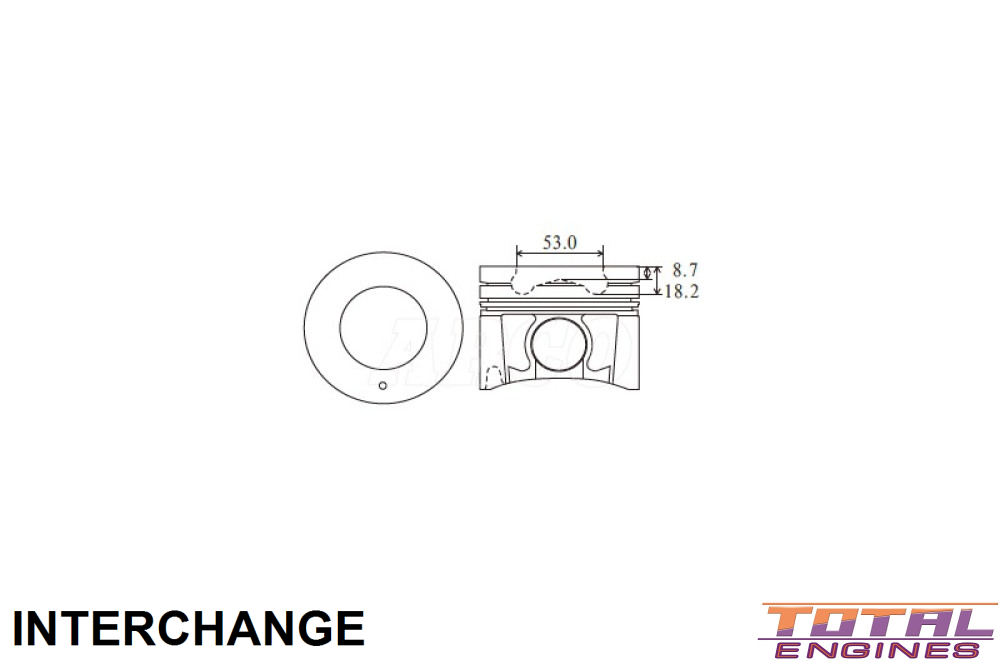

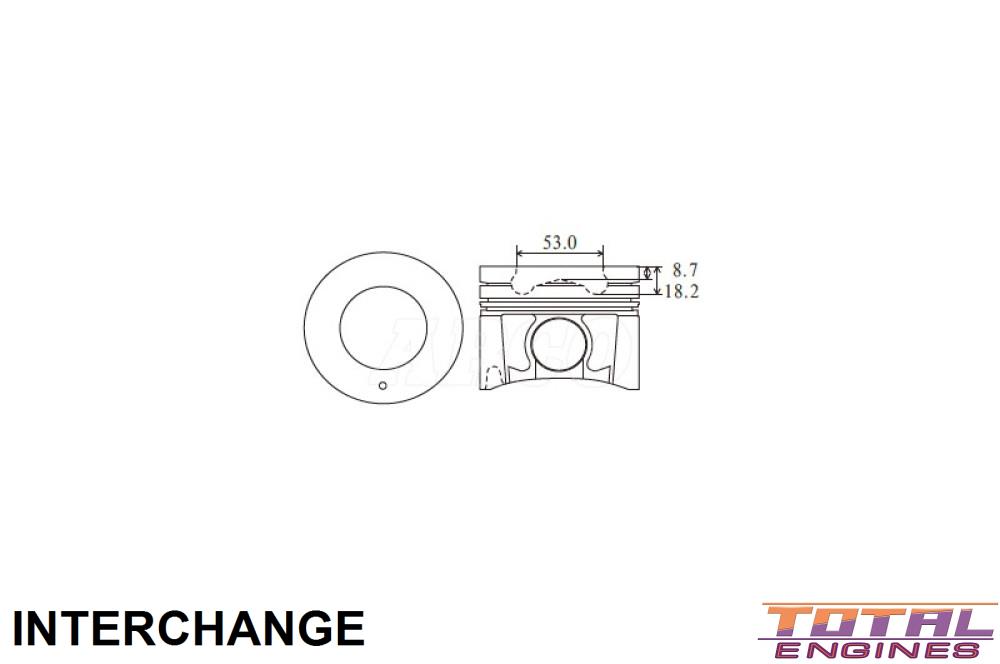

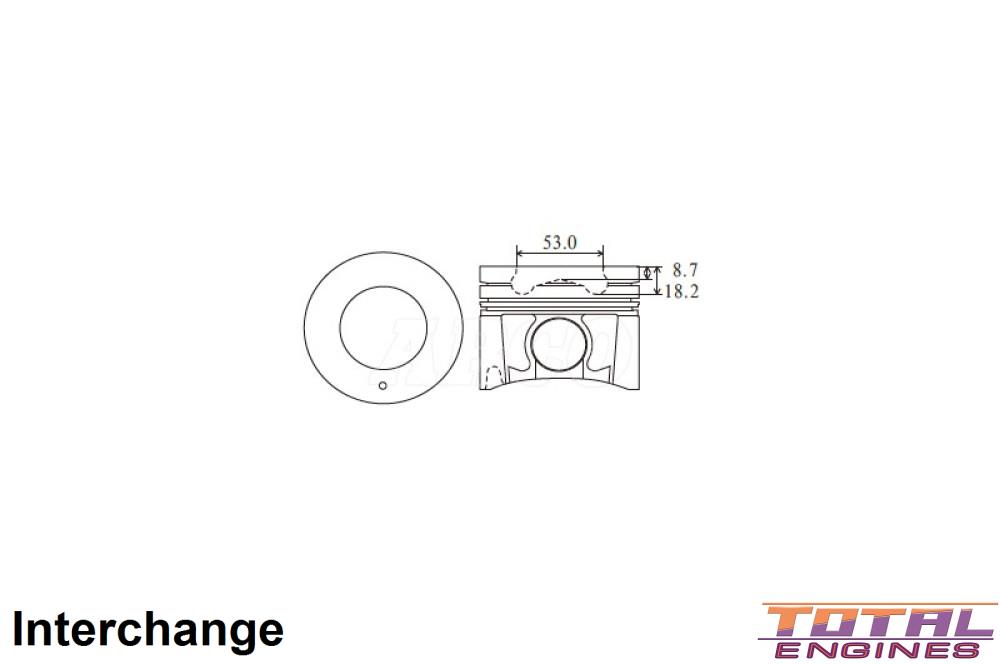

Comp Height: 50.10mm - 8.70mm -18.20mm
Combustion Bowl OD: 53.00mm
Pin Size: 33.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm

Description

Suits Common Rail

Alfin insert, Oil gallery cooling
