INTERCHANGE >> INTERCHANGE Piston & ring set - PKT1HDFT-0.50

INTERCHANGE Piston & ring set - PKT1HDFT-0.50

Part
INTERCHANGE logo

INTERCHANGE Piston & ring set - PKT1HDFT-0.50

Out Of Stock

Specifications
Piston Set: 6 x Pistons, Pins & Rings
Std Bore Size: 94.00mm
Size: 0.50mm/.020"
Head Type: Dish top
Piston Type: Cast
Length: 80.40mm

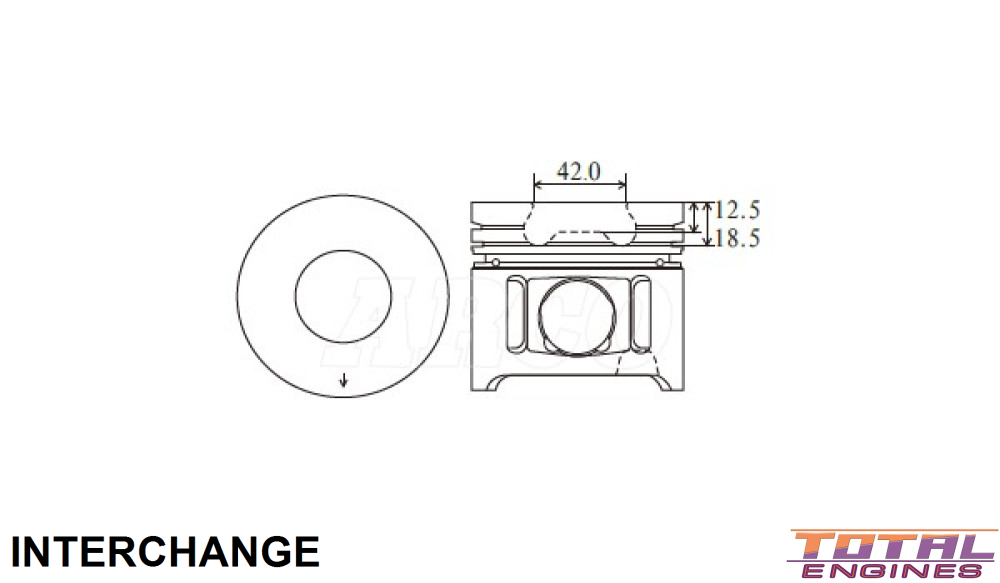

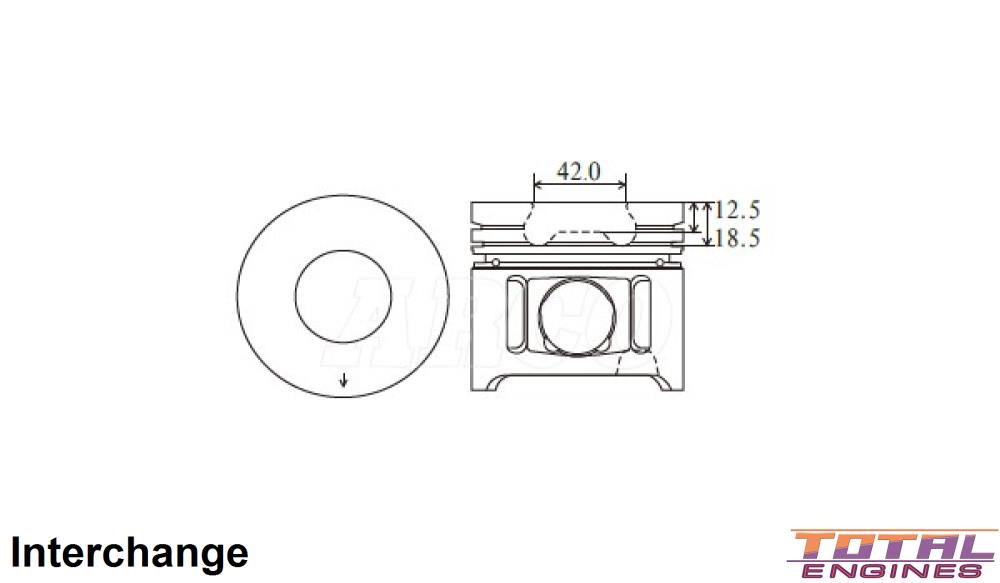

Comp Height: 49.40mm - 12.50mm - 18.50mm
Combustion Bowl OD: 41.80mm
Pin Size: 33.00mm x 73.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm

Description

Suits 1HD-FT

Alfin inserts, Oil gallery cooling
