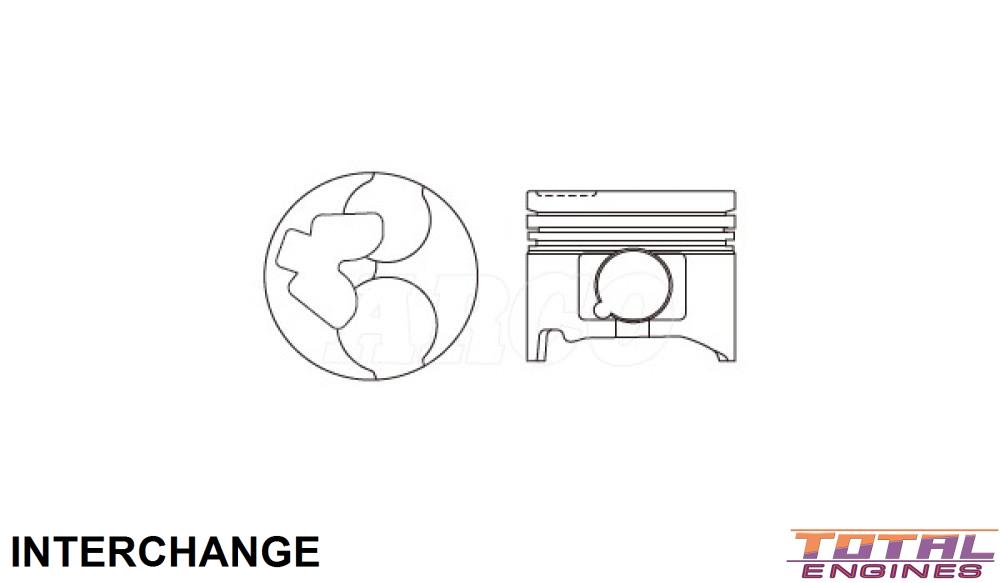

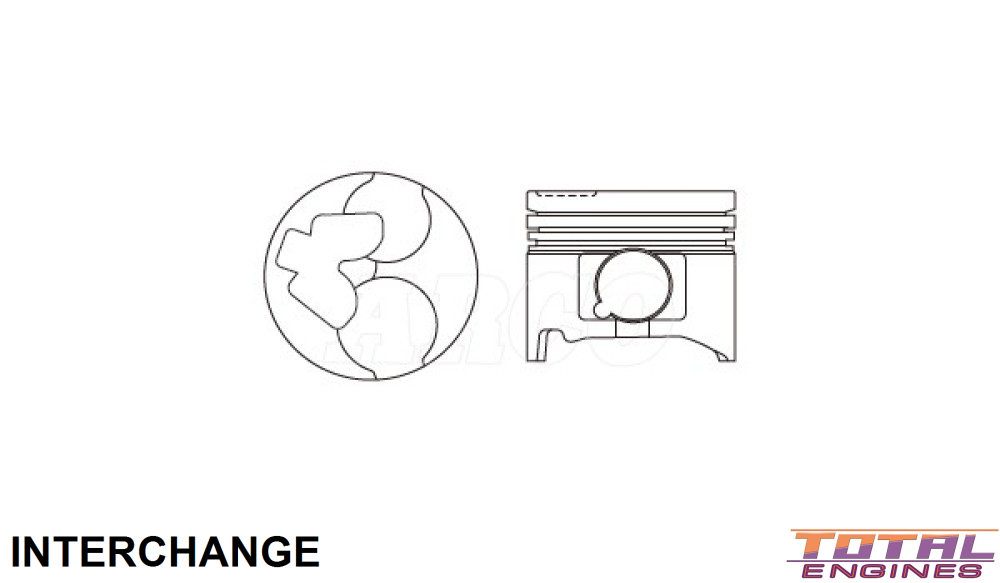

Interchange Piston & ring set - PKT1KZTI-A-0.50

Specifications
Oil Ring Width:	3.00mm
2nd Ring Width:	2.00mm
Top Ring Width:	2.00mm Half Keystone
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	34.00mm x 73.00mm
Comp Height:	45.80mm - 0.90mm -2.40mm
Length:	80.70mm
Piston Type:	Cast
Head Type:	Flat top with two valve reliefs
Size:	0.50mm/.020"
Std Bore Size:	96.00mm
Piston Set:	4 x Pistons, Pins & Rings

Description

Valve relief type piston crown

Alfin insert, Oil gallery cooling, Anodized crown
