INTERCHANGE Piston & ring set - PKT5L-A-1.00

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	99.50mm
Size:	1.00mm/.040"

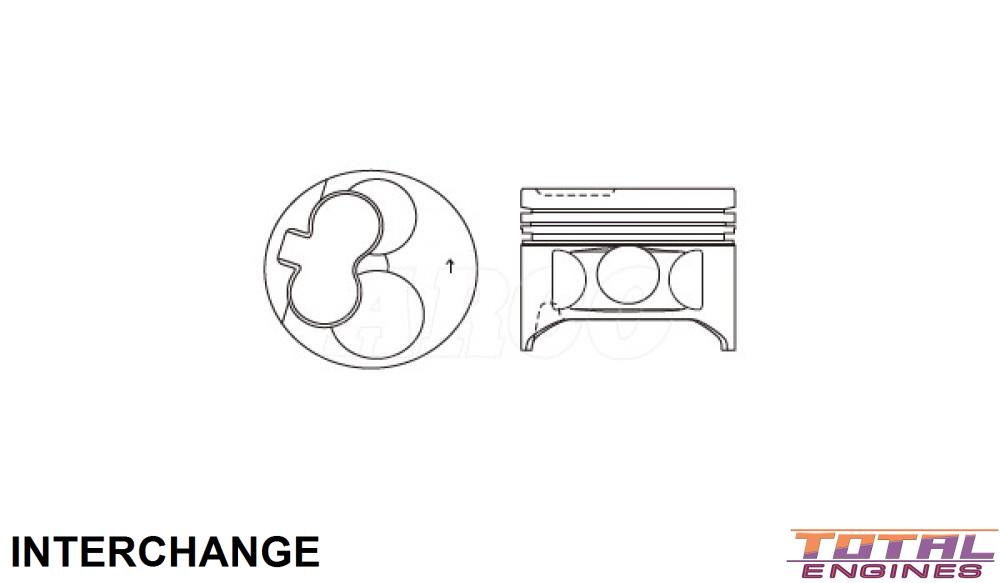

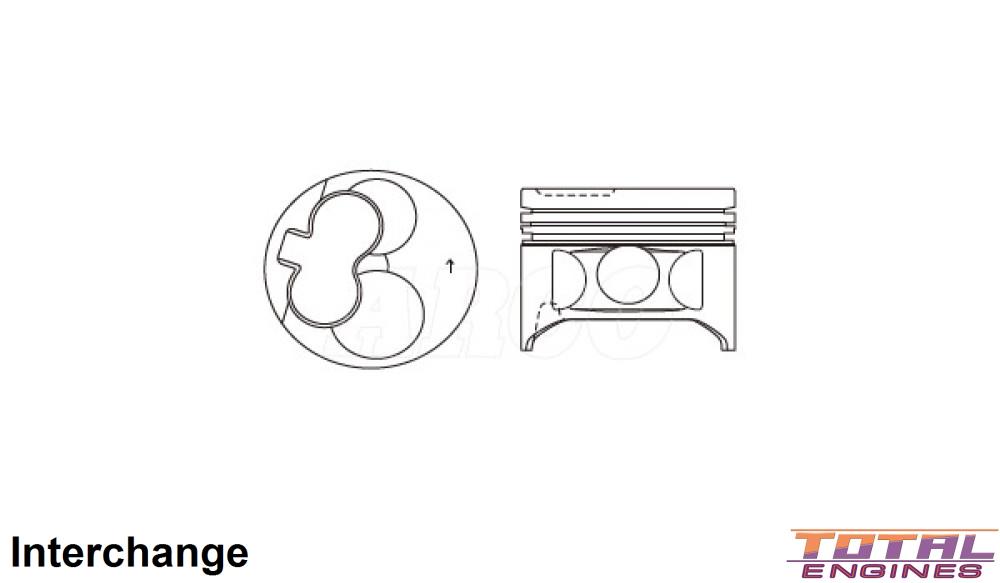

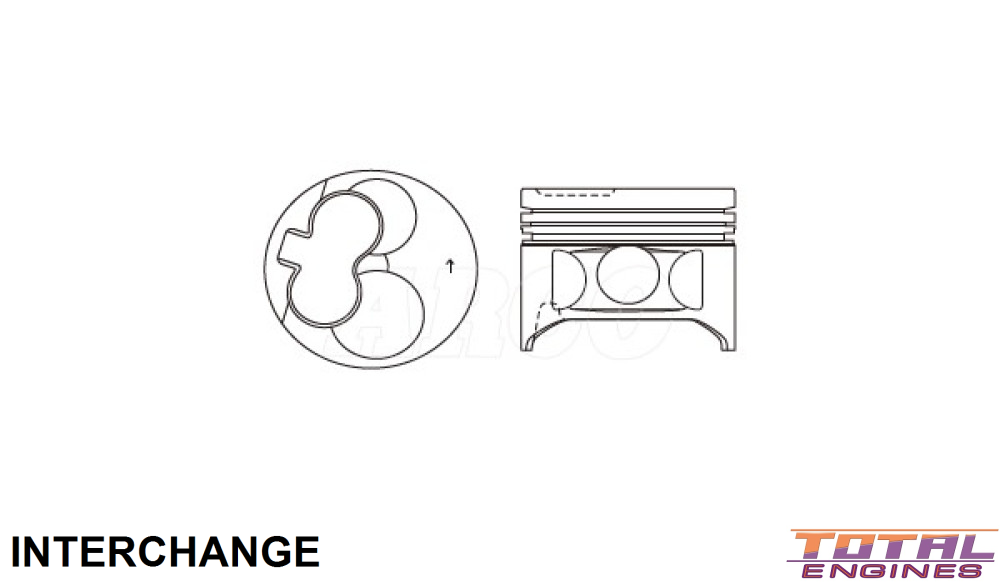

Head Type:	Flat top with two valve reliefs
Piston Type:	Cast
Length:	80.30mm
Comp Height:	42.30mm - 0.90mm - 2.20mm
Pin Size:	29.00mm x 73.90mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	2.00mm Half Keystone
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm

Description

Alfin insert, Oil gallery cooling
