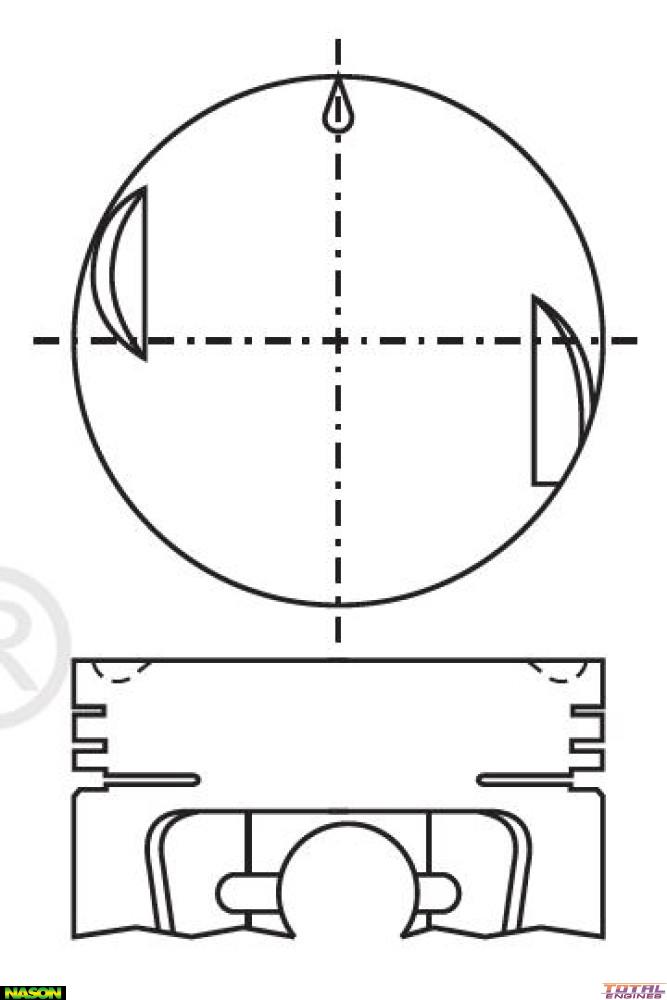

Nason Piston & Pin Set - 4P1023-STD

Part

Nason Piston & Pin Set - 4P1023-STD

Out Of Stock

Specifications
Ring Set:	2C4807 or 4807
Oil Ring Width:	2.80mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Full Floating
Pin Size:	16.00mm x 50.00mm
Comp Height:	27.50mm
Length:	57.50mm
Piston Type:	Cast
Head Type:	Flat Top with 2 Vale Reliefs
Std Bore Size:	62.00mm
Piston Set:	4 x Piston & Pins
