Nason Piston & Pin Set - 4P1025-1.00

Part

Nason Piston & Pin Set - 4P1025-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	74.00mm
Size:	1.00mm / .040"

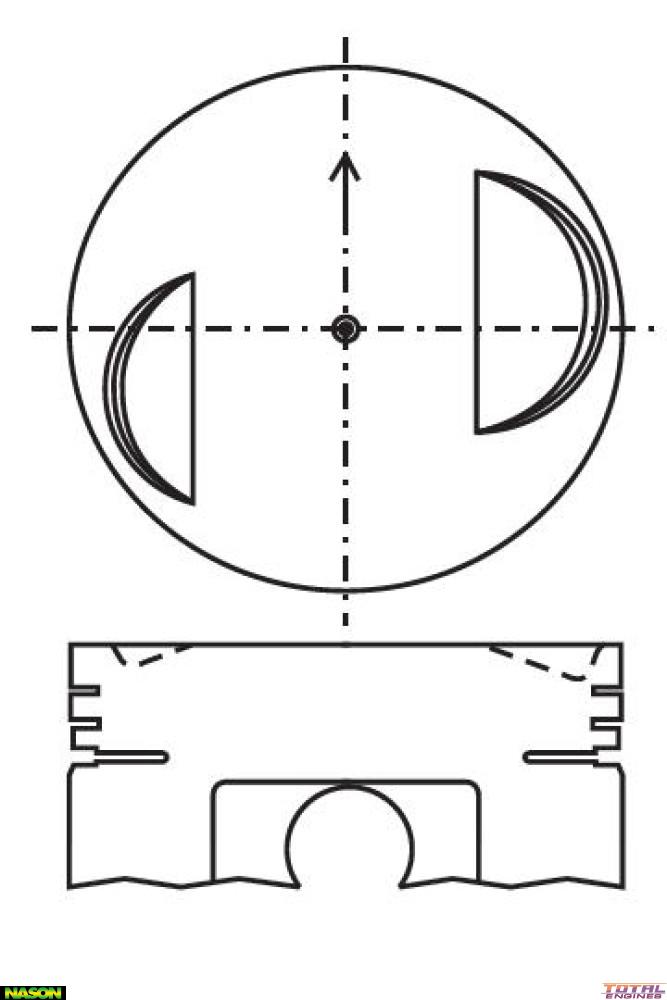

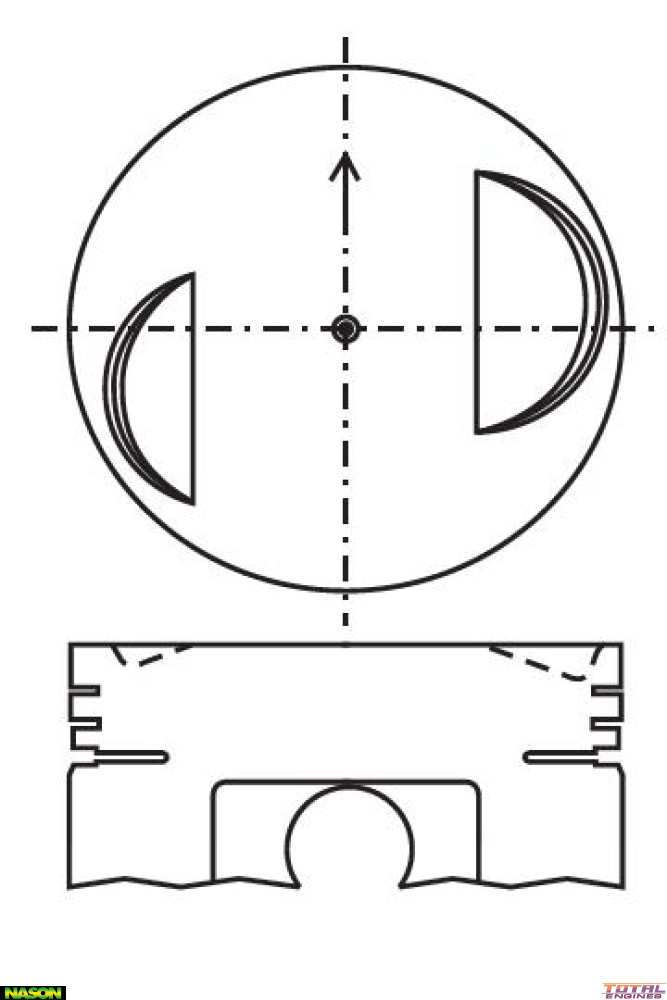

Head Type:	Flat Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	56.20mm
Comp Height:	29.20mm
Pin Size:	17.00mm x 65.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4258
Size:	1.00mm Oversize
