Nason Piston & Pin Set - 4P1026-0.50

Part

Nason Piston & Pin Set - 4P1026-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	74.00mm
Size:	0.50mm / .020"

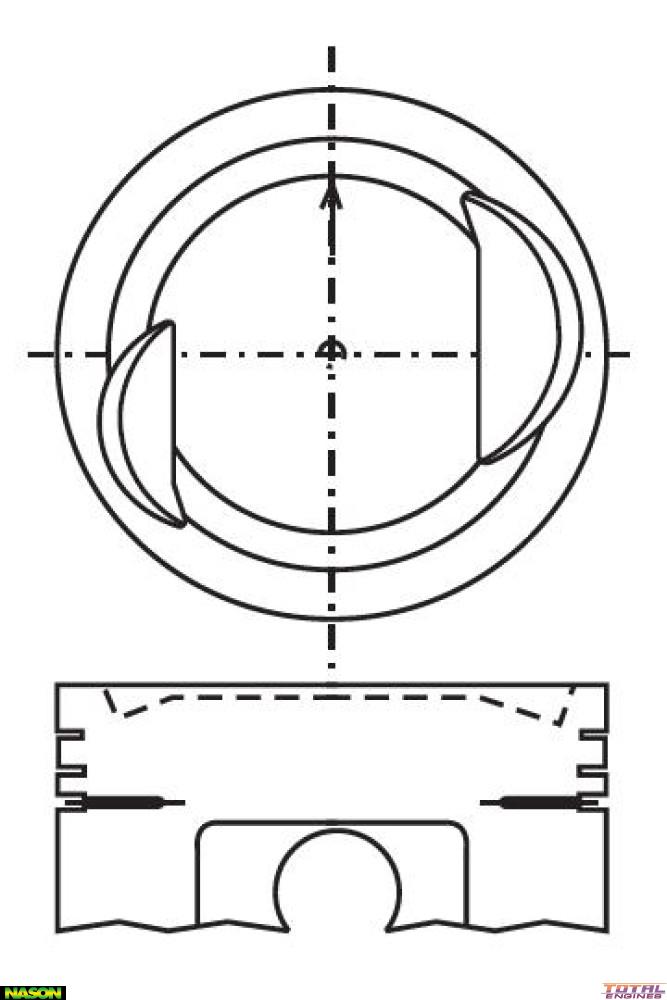

Head Type:	Dish Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	55.40mm
Comp Height:	28.40mm - 1.30mm
Pin Size:	17.00mm x 62.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	2.80mm
Ring Set:	2C4258
Size:	0.50mm Oversize
