Nason Piston & Pin Set - 4P1034-0.50

Part

Nason Piston & Pin Set - 4P1034-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	83.00mm
Size:	0.50mm / .020"
Head Type:	Dome Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	61.50mm
Comp Height:	30.60mm + 0.50mm
Pin Size:	20.00mm x 57.00mm
Pin Type:	Full Floating
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4651
Size:	0.50mm Oversize

Description

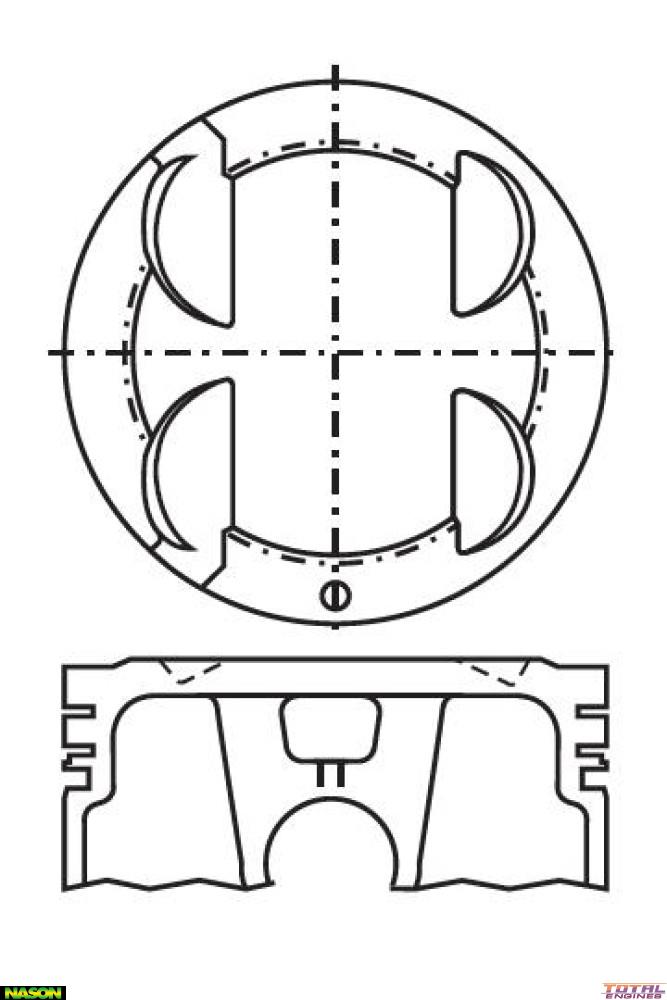

Dome Top With Four Valve Reliefs
