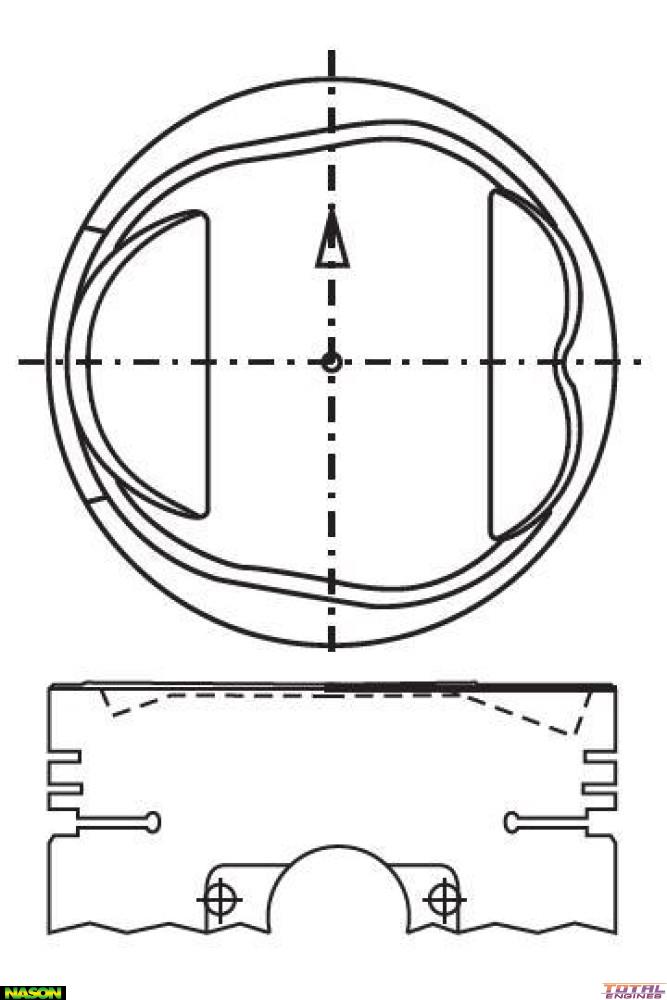

Nason Piston & Pin Set - 4P1063-0.50

Part

Nason Piston & Pin Set - 4P1063-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	85.00mm
Size:	0.50mm / .020"
Head Type:	Dish Top with 3 Valve Reliefs
Piston Type:	Cast
Length:	67.50mm
Comp Height:	35.10mm - 0.70mm
Pin Size:	22.00mm x 62.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2C4613
Size:	0.50mm Oversize

Description

22mm Pin Dish Top
