Nason >> Nason Piston & Pin Set - 4P1067-0.50

Nason Piston & Pin Set - 4P1067-0.50

Part
Nason logo

Nason Piston & Pin Set - 4P1067-0.50

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4933
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 22.00mm x 62.00mm
Comp Height: 35.00mm - 1.10mm
Length: 67.00mm
Piston Type: Cast

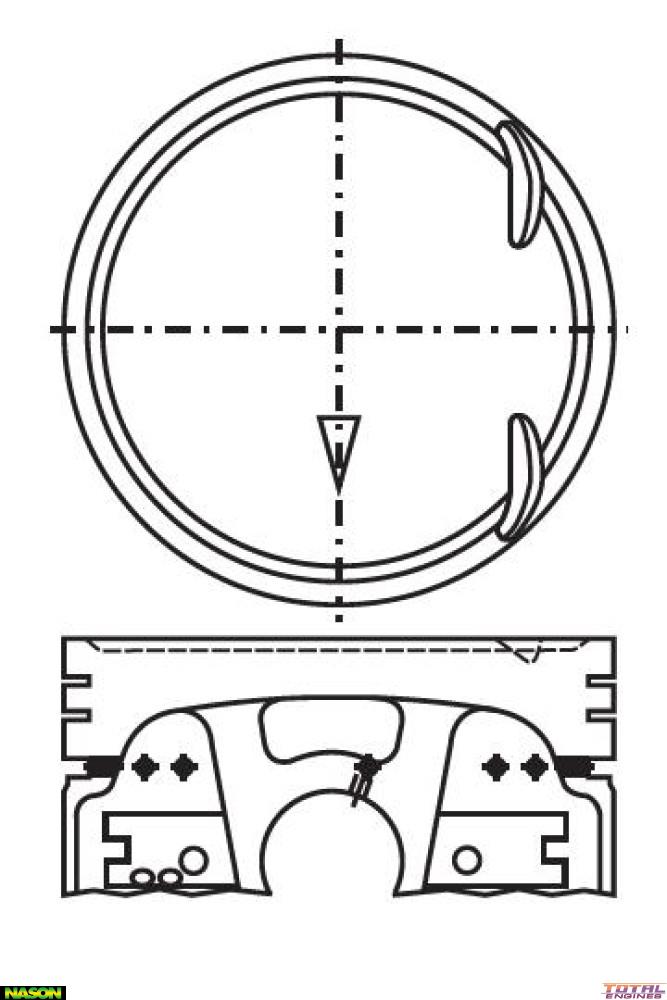

Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 85.00mm
Piston Set: 4 x Piston & Pins

Description

Bowl Depth 1.10mm
