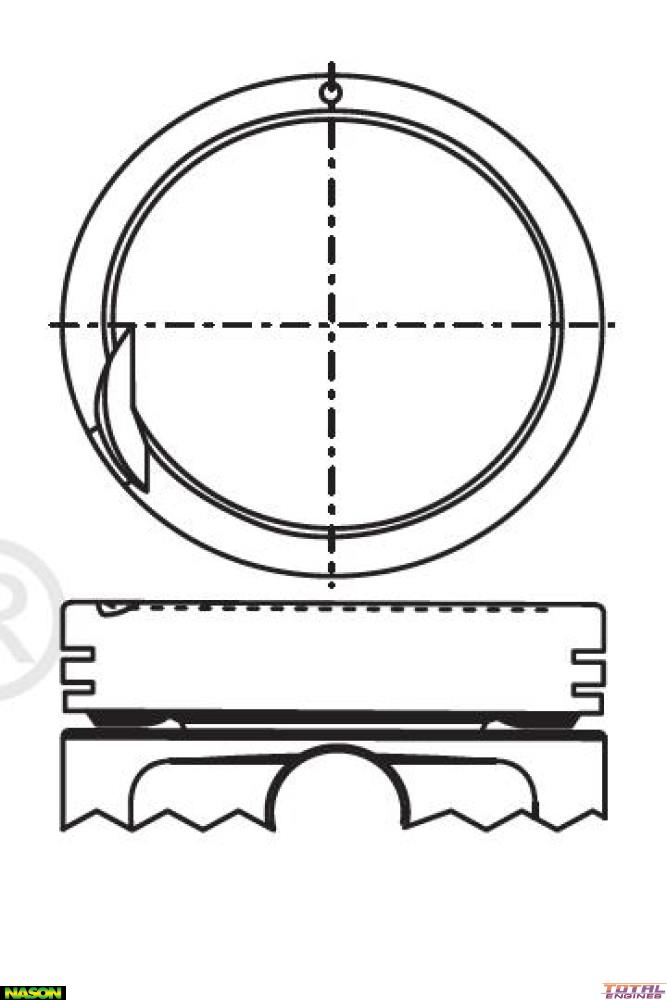

Nason Piston & Pin Set - 4P1210-STD

Part

Nason Piston & Pin Set - 4P1210-STD

Out Of Stock

Specifications
Ring Set:	2C4782 or 4782
Oil Ring Width:	3.00mm
2nd Ring Width:	1.50mm
Top Ring Width:	1.50mm
Piston to Bore:	See Label on Box
Skirt Coating:	No
Pin Type:	Press Fit
Pin Size:	18.00mm x 47.50mm
Comp Height:	31.30mm - 0.70mm
Length:	54.40mm
Piston Type:	Cast
Head Type:	Dish Top with 1 Valve Relief
Std Bore Size:	75.50mm
Piston Set:	4 x Piston & Pins
