Nason Piston & Pin Set - 4P1234-1.00

Part

Nason Piston & Pin Set - 4P1234-1.00

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	80.60mm
Size:	1.00mm / .040"

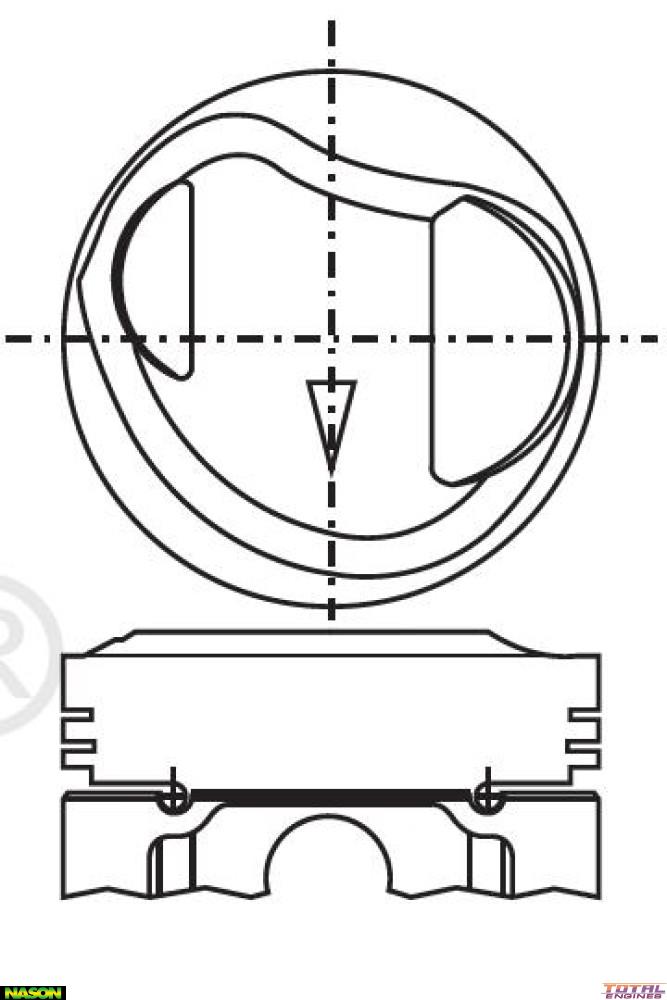

Head Type:	Dome Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	71.80mm
Comp Height:	34.00mm + 3.80mm
Pin Size:	19.00mm x 64.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	4.00mm
Ring Set:	2C4367
Size:	1.00mm Oversize
