Nason >> Nason Piston & Pin Set - 4P1275-1.00

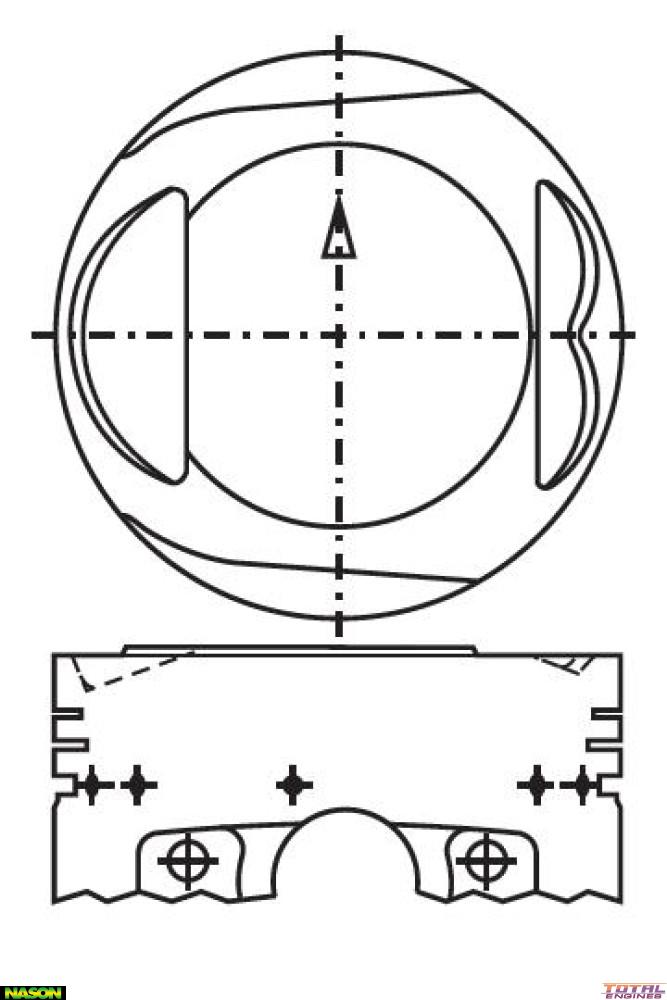

Nason Piston & Pin Set - 4P1275-1.00

Part
Nason logo

Nason Piston & Pin Set - 4P1275-1.00

$247.75

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: 1.00mm / .040"
Head Type: Dome Top with 3 Valve Reliefs
Piston Type: Cast
Length: 67.00mm
Comp Height: 35.00mm + 0.20mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2C4783
Size: 1.00mm Oversize

Description

Nason Piston & Pin Set - 1.00 Oversize

Upgrade your engine performance with the Nason Piston & Pin Set - 1.00 Oversize, meticulously designed for reliability and enhanced efficiency. Crafted by Nason, a trusted brand in automotive components, this piston and pin set is tailored to meet the demands of your Mitsubishi Nimbus, ensuring improved power and longevity.

Key Features:

  • Complete Set: This package includes 4 high-quality pistons and pins, making it an ideal choice for a complete overhaul.
  • Precision Engineering: With a standard bore size of 86.50mm and a 1.00mm / .040\" oversize, these pistons are designed for a perfect fit and optimal performance.
  • Dome Top Design: The dome top features 3 valve reliefs, enhancing combustion efficiency for better power output.
  • Durable Construction: Made from cast material, these pistons are built to withstand the rigors of high performance and stress.
  • Engine Compatibility: Fits select Mitsubishi Nimbus UF 2.4L models—specifically UF1P45 (88kw) and UF2P45 (88kw)—to ensure a reliable installation.

Specifications:

  • Piston Length: 67.00mm
  • Compression Height: 35.00mm + 0.20mm
  • Piston Pin Size: 22.00mm x 62.00mm (Press Fit)
  • Ring Set Specifications: Top Ring Width: 1.20mm, 2nd Ring Width: 1.50mm, Oil Ring Width: 3.00mm (Ring Set: 2C4783)

Please Note:

This piston and pin set will NOT fit the following vehicle models:

  • Mitsubishi Nimbus UF 2.4L N34W (103kw)
  • Mitsubishi Nimbus UF 2.4L UF3P45 (103kw)
  • Mitsubishi Nimbus UF 2.4L UF4P45 (103kw)

Make the smart choice for your vehicle's performance and reliability today. Upgrade to the Nason Piston & Pin Set - 1.00 Oversize and experience an impressive boost that will keep your engine running smoothly for miles to come!
