Nason >> Nason Piston & Pin Set - 4P1282-STD

Nason Piston & Pin Set - 4P1282-STD

Part
Nason logo

Nason Piston & Pin Set - 4P1282-STD

Out Of Stock

Specifications
Ring Set: 2C4947
Oil Ring Width: 3.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 20.00mm x 50.00mm
Comp Height: 32.10mm - 6.50mm
Length: 51.60mm
Piston Type: Cast

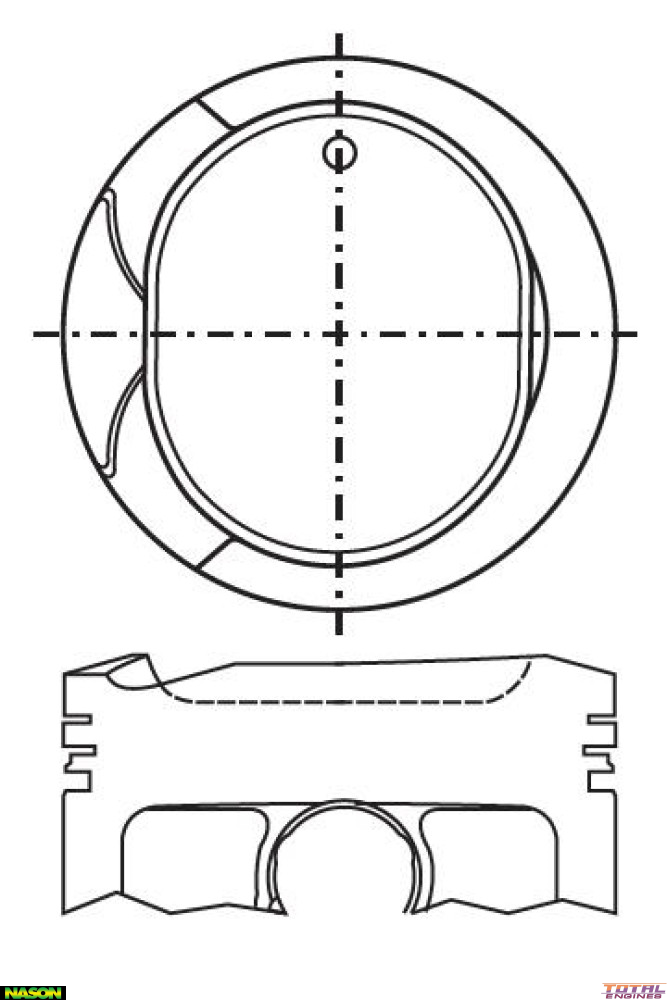

Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 79.00mm
Piston Set: 4 x Piston & Pins

Description

Anodized Head, Top & 2nd Ring Lands
