Nason Piston & Pin Set - 4P1285-0.50

Part

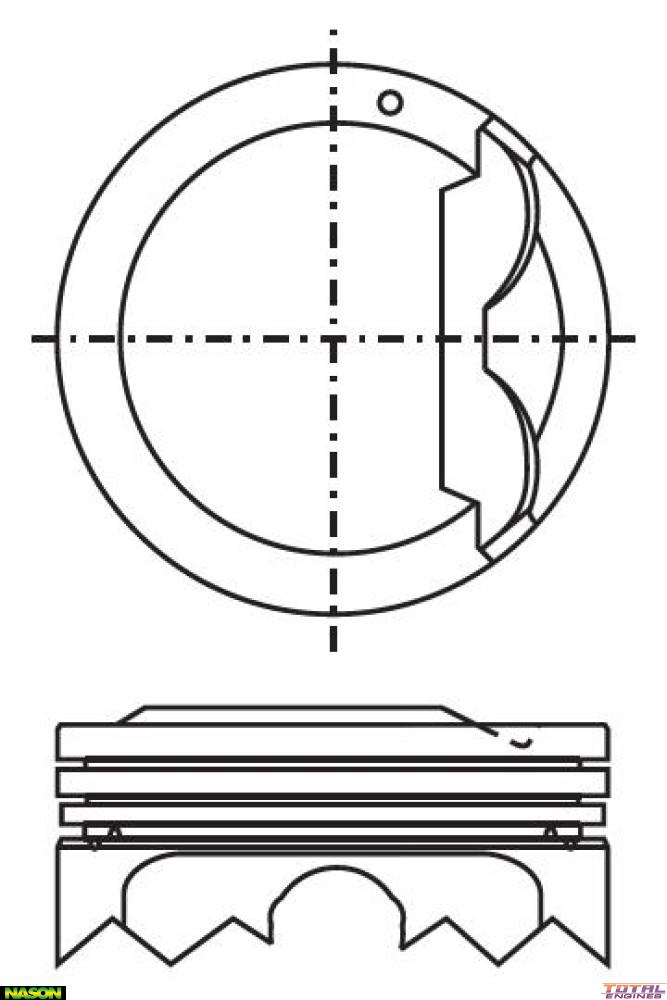

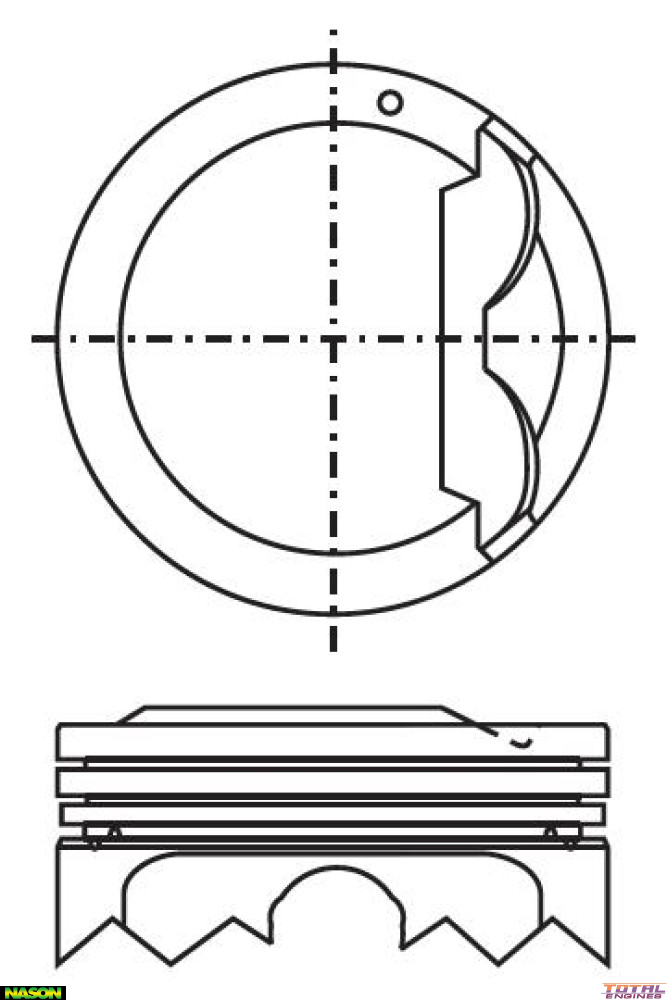

Nason Piston & Pin Set - 4P1285-0.50

Out Of Stock

Specifications
Piston Set:	4 x Piston & Pins
Std Bore Size:	75.50mm
Size:	0.50mm / .020"
Head Type:	Dome Top with 2 Valve Reliefs
Piston Type:	Cast
Length:	48.00mm
Comp Height:	28.70mm + 2.30mm
Pin Size:	18.00mm x 47.50mm
Pin Type:	Press Fit
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2C4576
Size:	0.50mm Oversize
