Nason >> Nason Piston & Pin Set - 4P1310-1.00

Nason Piston & Pin Set - 4P1310-1.00

Part
Nason logo

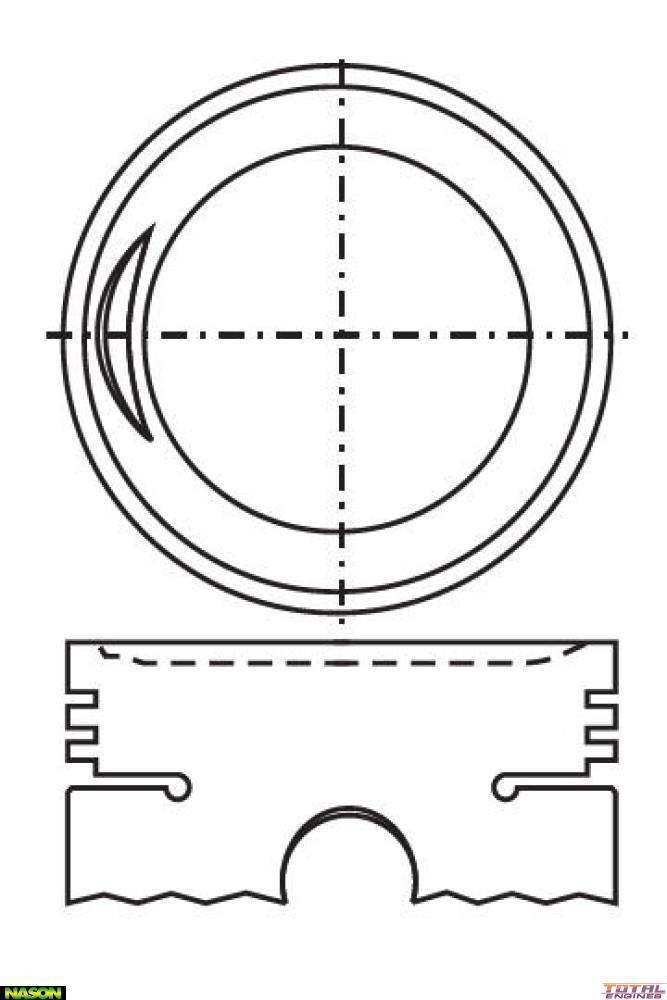

Nason Piston & Pin Set - 4P1310-1.00

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 76.90mm
Size: 1.00mm / .040"
Head Type: Dish Top with 1 Valve Relief
Piston Type: Cast
Length: 70.40mm
Comp Height: 33.50mm - 3.00mm
Pin Size: 19.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C675 or 675
Size: 1.00mm Oversize
