Nason Piston & Pin Set - 4P1381-0.50

Part

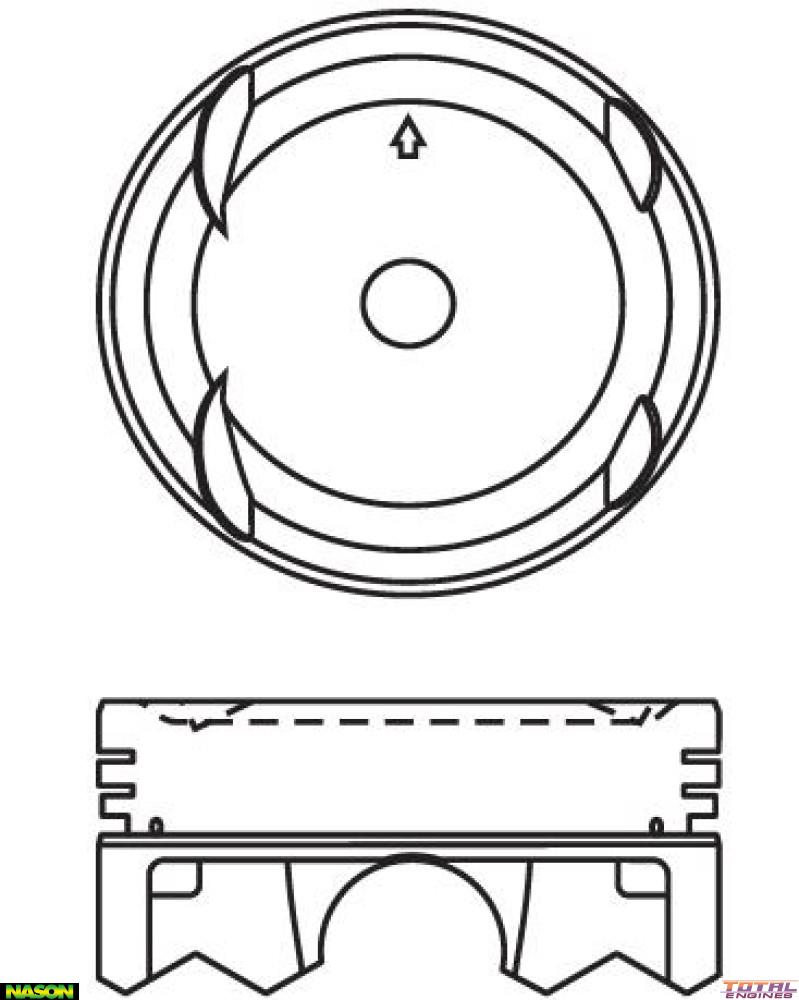

Nason Piston & Pin Set - 4P1381-0.50

Out Of Stock

Specifications
Size:	0.50mm Oversize
Ring Set:	2C5147
Oil Ring Width:	2.00mm
2nd Ring Width:	1.20mm
Top Ring Width:	1.20mm
Piston to Bore:	See Label on Box
Skirt Coating:	Yes
Pin Type:	Full Floating
Pin Size:	21.96mm x 52.20mm
Comp Height:	29.50mm - 2.50mm
Length:	53.50mm
Piston Type:	Cast
Head Type:	Dish Top with 4 Valve Reliefs
Size:	0.50mm / .020"
Std Bore Size:	87.00mm
Piston Set:	4 x Piston & Pins

Description

Suits K24A1
