Nason >> Nason Piston & Pin Set - 4P1396-0.50

Nason Piston & Pin Set - 4P1396-0.50

Part
Nason logo

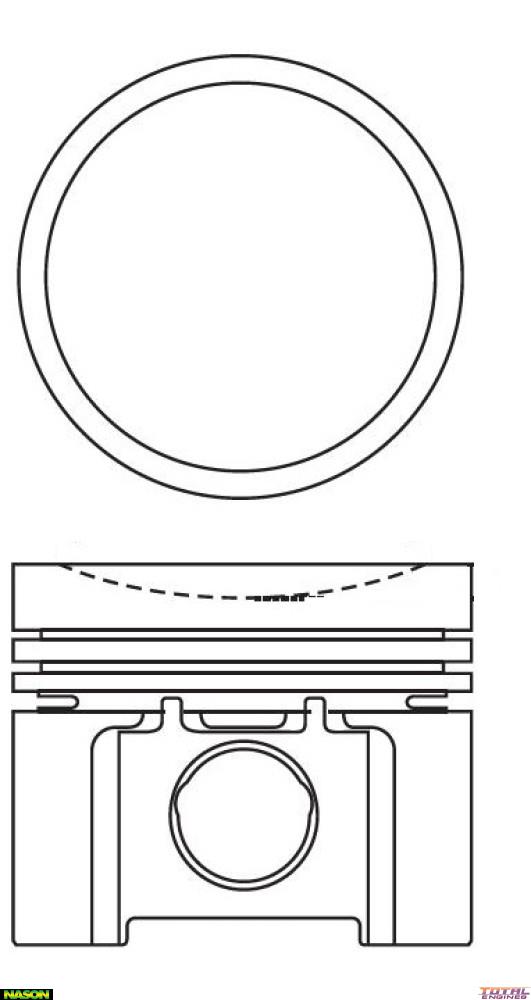

Nason Piston & Pin Set - 4P1396-0.50

Out Of Stock

Specifications
Ring Set: 4355
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 20.64mm x 55.20mm
Comp Height: 38.80mm - 5.70mm
Length: 58.74mm
Piston Type: Cast
Head Type: Dish Top
Size: 0.50mm / .020"
Std Bore Size: 70.62mm
Piston Set: 4 x Piston & Pins
