Nason >> Nason Piston & Pin Set - 6DP2023-1.00

Nason Piston & Pin Set - 6DP2023-1.00

Part
Nason logo

Nason Piston & Pin Set - 6DP2023-1.00

$928.41

Specifications
Size: Oversize 1.00mm
Ring Set: 35898-1.00
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm Half Keystone
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 33.00mm x 73.00mm

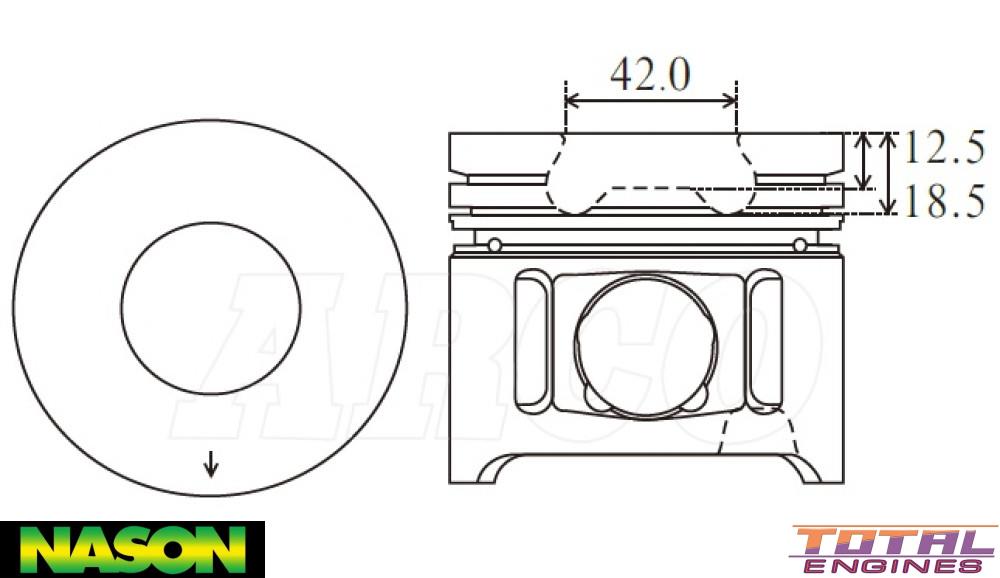

Combustion Bowl OD: 42.00mm
Comp Height: 49.40mm, -12.50mm, -18.50mm
Length: 80.40mm
Piston Type: Cast
Head Type: Combustion Bowl
Size: 1.00mm
Std Bore Size: 94.00mm
Piston Set: 6 x Pistons & Pins

Description

Nason Piston & Pin Set 1.00 Oversize – Premium Performance for Your Toyota Landcruiser!

Elevate your engine’s performance with the Nason Piston & Pin Set 1.00 Oversize! Specially designed for the Toyota Landcruiser HDJ80R 4.2L with the robust 1HD-FT engine, this premium piston set is your go-to solution for improved efficiency and durability.

Key Features:

  • Precision Engineering: Each set includes 6 high-quality cast pistons and pins, meticulously crafted to provide superior engine performance.
  • Optimal Compatibility: This piston set is designed exclusively for the 1HD-FT engine, ensuring a perfect fit and seamless integration into your vehicle.
  • Enhanced Cooling: Featuring an Alfin insert with oil gallery cooling, this piston set promotes efficient heat dissipation and extends engine life.
  • Oversized Dimensions: With a standard bore size of 94.00mm, this 1.00mm oversized set is ideal for those looking to restore or enhance engine performance.

Specifications:

  • Piston Length: 80.40mm
  • Compression Height: 49.40mm, -12.50mm, -18.50mm
  • Combustion Bowl Diameter: 42.00mm
  • Pin Size: 33.00mm x 73.00mm (Full Floating design)
  • Ring Specifications:
  • Top Ring Width: 2.00mm (Half Keystone)
  • Second Ring Width: 2.00mm (2.00mm)
  • Oil Ring Width: 4.00mm

Important Fitment Note:

Please be aware that this product does NOT fit the Toyota Landcruiser HDJ80R 4.2L 1HD-T. Ensure compatibility with your vehicle before purchase.

Upgrade your Toyota Landcruiser’s engine with confidence by choosing the Nason Piston & Pin Set 1.00 Oversize. With its exceptional design and superior materials, this piston set guarantees enhanced performance, longevity, and reliability on any journey. Order yours today and experience the difference!
