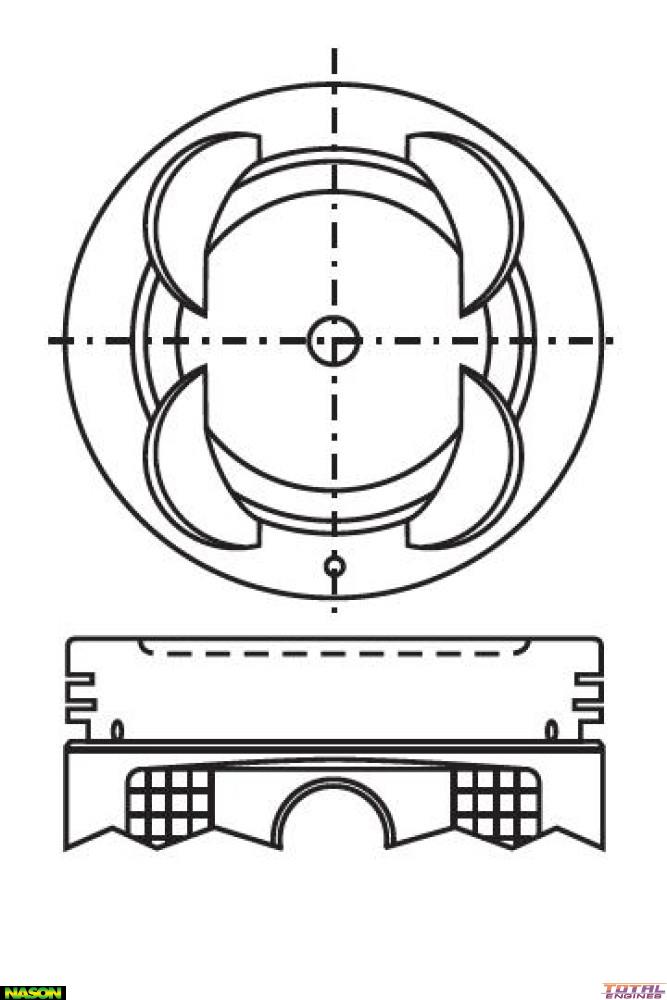

Nason Piston & Pin Set - 6P1185-STD

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	93.40mm
Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	57.00mm
Comp Height:	33.70mm - 3.60mm
Pin Size:	22.00mm x 66.00mm
Pin Type:	Press Fit
Skirt Coating:	No
Piston to Bore:	See Label on Box
Top Ring Width:	1.50mm
2nd Ring Width:	1.50mm
Oil Ring Width:	3.00mm
Ring Set:	2M4945
Size:	Suits Dish Top 33.70mm Complete Height

Description

Comp Height 33.70mm
