Nason >> Nason Piston & Pin Set - 6P1383-1.00

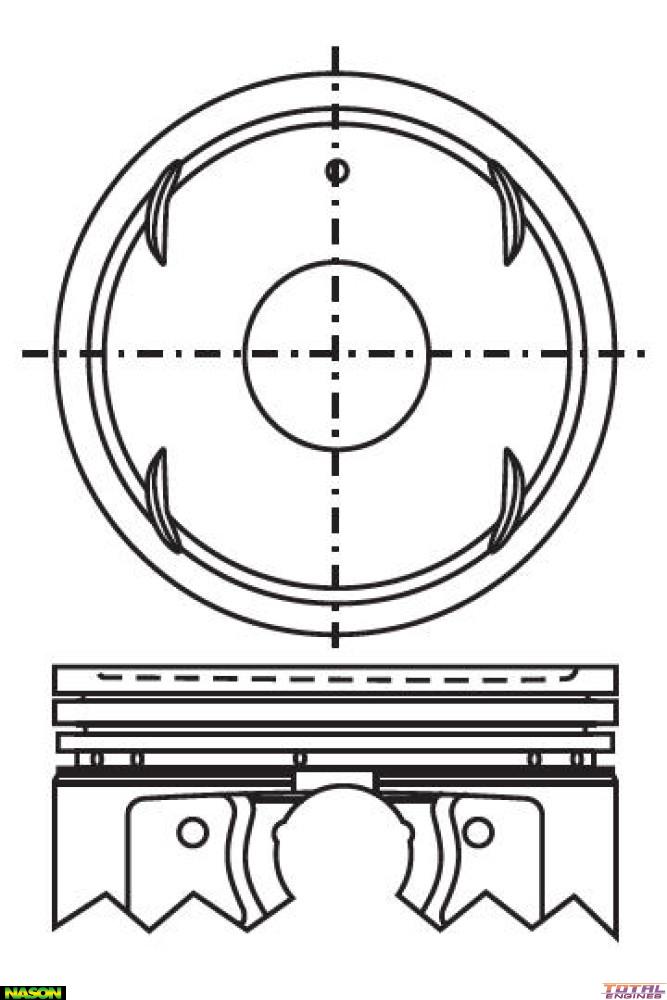

Nason Piston & Pin Set - 6P1383-1.00

Part
Nason logo

Nason Piston & Pin Set - 6P1383-1.00

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4670
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Press Fit
Pin Size: 22.00mm x 64.00mm
Comp Height: 30.10mm - 1.30mm
Length: 64.20mm
Piston Type: Cast
Head Type: Dist Top with 4 Valve Relies
Size: 1.00mm / .040"
Std Bore Size: 91.10mm
Piston Set: 6 x Piston & Pins

Description

Comp height 30.10mm
