Nason Piston & Pin Set - 6P1436-0.50

Part

Nason Piston & Pin Set - 6P1436-0.50

Out Of Stock

Specifications
Piston Set:	6 x Piston & Pins
Std Bore Size:	86.70mm
Size:	0.50mm / .020"

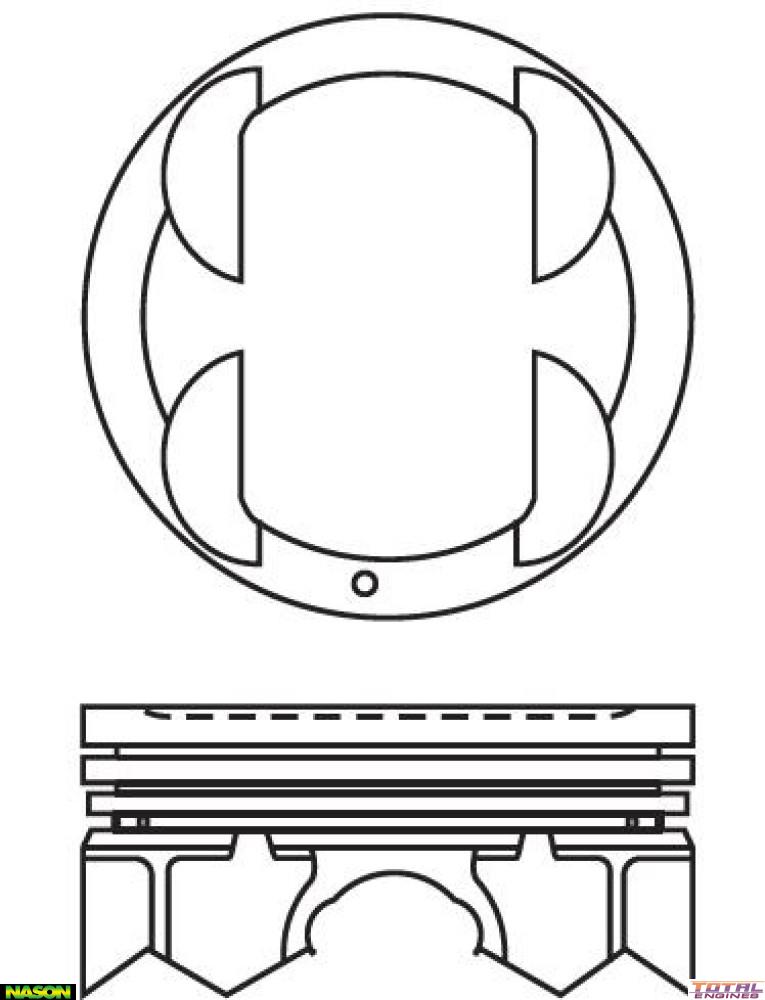

Head Type:	Dish Top with 4 Valve Reliefs
Piston Type:	Cast
Length:	54.00mm
Comp Height:	30.50mm - 0.70mm
Pin Size:	21.00mm x 60.00mm
Pin Type:	Press Fit
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	1.20mm
2nd Ring Width:	1.20mm
Oil Ring Width:	2.00mm
Ring Set:	2C5384-STD
Size:	0.50mm Oversize

Description

Dish Top With Valve Reliefs
