Nason >> Nason Piston & Pin Set - 8DP2064-0.50

Nason Piston & Pin Set - 8DP2064-0.50

Part
Nason logo

Nason Piston & Pin Set - 8DP2064-0.50

$1,251.61

Specifications
Piston Set: 8 x Pistons & Pins
Std Bore Size: 86.00mm
Size: 0.50mm / .020"
Head Type: Combustion Chamber With 4 Valve Reliefs
Piston Type: Cast
Length: 72.00mm

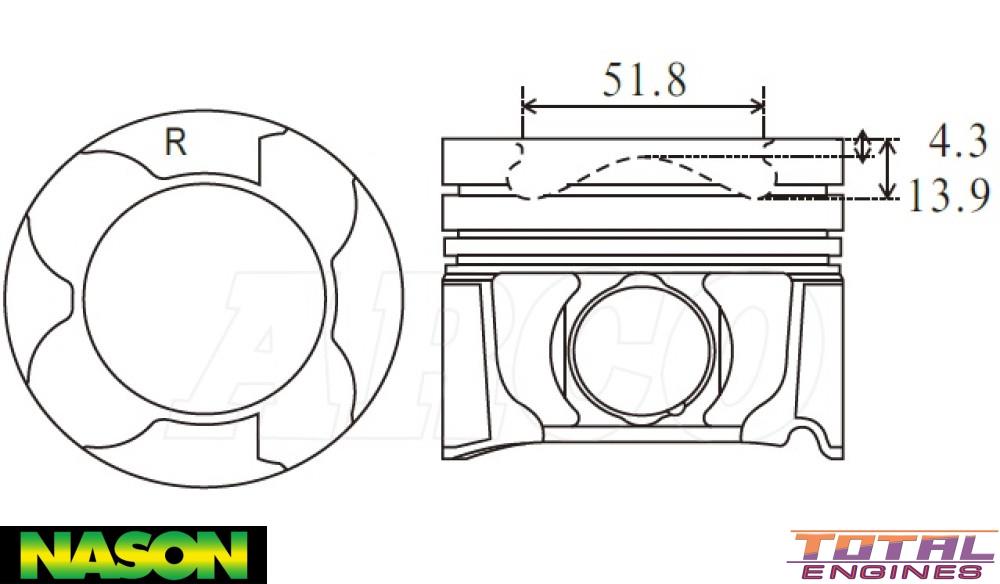

Comp Height: 48.00mm, -4.30mm, -13.90mm
Combustion Bowl OD: 51.80mm
Pin Size: 29.00mm x 69.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.00mm
Ring Set: 36034-0.50

Description

Nason Piston & Pin Set - 0.50 Oversize

Elevate the performance of your Toyota Landcruiser with the Nason Piston & Pin Set, designed to take your engine's efficiency and reliability to the next level. This premium kit comes with 8 pistons and pins, engineered to seamlessly fit specific Landcruiser models.

Key Features:

  • Alfin Construction with Oil Gallery Cooling: Enhances durability and cooling performance, ensuring your engine runs smoothly under pressure.
  • Precision Engineering: Each piston features a standard bore size of 86.00mm, making it the ideal choice for enhancing your engine's power output and efficiency.
  • Combustion Chamber Design: Featuring a head type with 4 valve reliefs, this piston set is designed for optimal combustion performance.
  • Crafted for Excellence: The cast piston type, with a length of 72.00mm and a compression height of 48.00mm, ensures that you get a reliable fit throughout the engine's rev range.
  • Durable Construction: With a skirt coating and a full floating pin type (29.00mm x 69.00mm), this set is designed to withstand the rigors of daily use and high-performance applications.
  • Comprehensive Ring Set: Each piston comes equipped with a ring set that includes a top ring width of 2.00mm, second ring width of 1.50mm, and an oil ring width of 2.00mm, ensuring superior sealing and lower oil consumption.

Compatibility:

This piston and pin set is specifically engineered to fit:

  • Toyota Landcruiser VDJ79R 4.5L
  • Toyota Landcruiser VDJ79R 4.5L Workmate

Important Note:

WARNING! This product will NOT fit the following vehicles:

  • Toyota Landcruiser VDJ79R 4.5L
  • Toyota Landcruiser VDJ79R 4.5L LX VDJ79

Upgrade your engine performance today with the Nason Piston & Pin Set - 0.50 Oversize! Experience the unbeatable combination of reliability, precision, and enhanced performance that only Nason can deliver. Order yours now and transform your ride!
